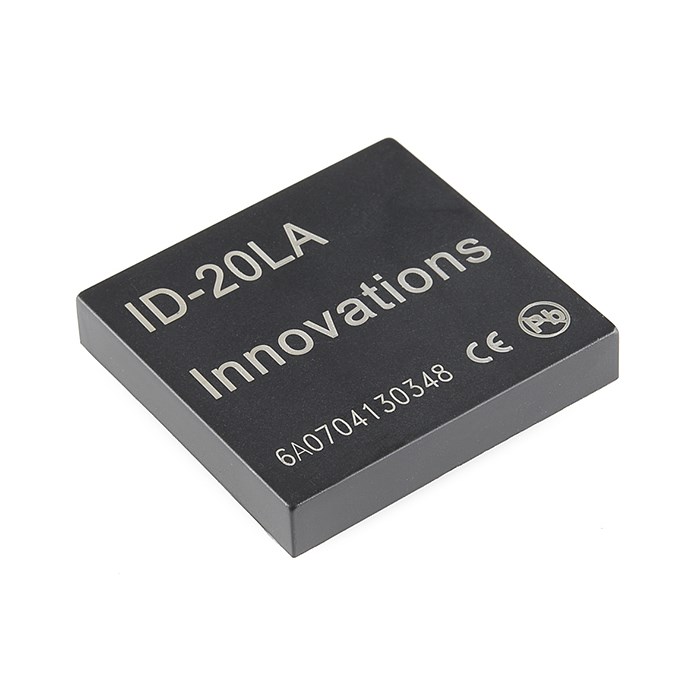

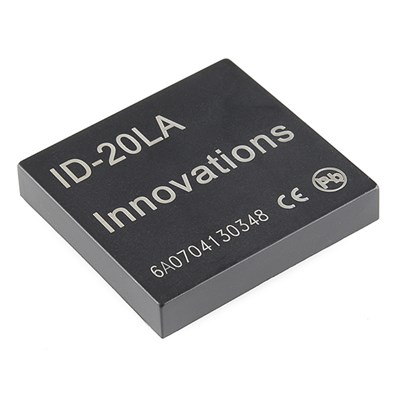

RFID Reader ID-20 (125 kHz)

Product Description

Description: This is a very simple to use RFID reader module. With a built in antenna, the only holdup is the 2mm pin spacing (breakout board available below). Power the module, hold up a card, and get a serial string output containing the unique ID of the card.



Features:

•
  5V supply


•
  125kHz read frequency


•
  EM4001 64-bit RFID tag compatible


•
  9600bps TTL and RS232 output


•
  Magnetic stripe emulation output


•
  Read range of 200mm

SFE Eagle Library has this part!



Dimensions: 38x40x7mm



Documents:

•
  Datasheet


•
  Bildr Tutorial
