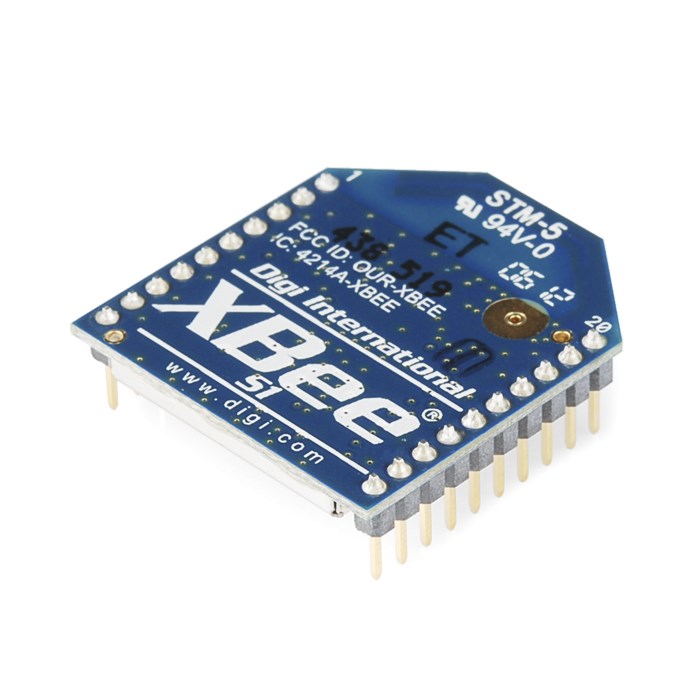

XBee 1mW Trace Antenna - Series 1 (802.15.4)

SparkFun | SKU: SX11215

$29.95

Features

3.3V @ 50mA

250kbps Max data rate

1mW output (+0dBm)

300ft (100m) range

Fully FCC certified

Product Description

This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Features:

3.3V @ 50mA

250kbps Max data rate

1mW output (+0dBm)

300ft (100m) range

Fully FCC certified

6 10-bit ADC input pins

8 digital IO pins

128-bit encryption

Local or over-air configuration

AT or API command set

Trace Antenna
